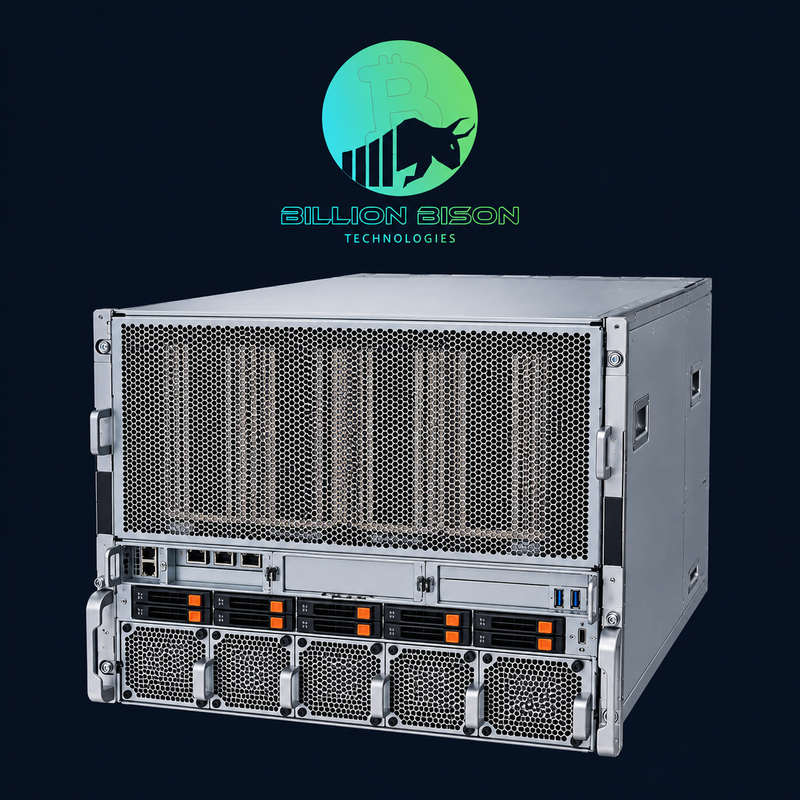

• Supermicro 10U NVIDIA B200 Gold Series GPU Server | Enterprise AI & HPC Solutions

Supermicro 10U NVIDIA B200 Gold Series GPU Server | Enterprise AI & HPC Solutions

$385,000.00


SKU:
Availability: In Stock

Product Details -

  • Dual Intel Xeon 6960P (72C/2.7GHz)
  • NVIDIA HGX B200 8-GPU
  • 2.3TB DDR5-6400
  • 4x 1.9TB U.2 NVMe SSD
  • 2x 1.92TB M.2 NVMe SSD
  • 8x Single 400G NDR/ETH OSFP
  • 1x NVIDIA BlueField-3 DPU 200Gb/s
  • 6x 5250W Redundant (3+3) Titanium Level

Specifications +

Model

Brand

SUPERMICRO

Series

Gold Series

Model

SYS-A22GA-NBRT-G1

Details

Workload

General Purpose Server

Type

Rack

Rack Height

10U

LEDs

HDD activity
Network activity LEDs
System information (overheat/UID)
UID

Hot-swap Fans

15 counter-rotating 80x80x80mm Fan(s)
4 counter-rotating 60x60x56mm Fan(s)

Processor

CPU Type

Intel Xeon

CPU Name

6960P (2.70 GHz)

CPU Socket

LGA 7529

Number of CPU Cores

72-Core Processor

Cache Memory

432 MB

# of Processors Installed

2

MAX Processors

2

Memory

Installed Memory Size

2.3TB

Memory Type

DDR5-6400

Max Memory Capacity

6TB

Memory Features

Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM

Number of Memory Slots

24

Storage

SSD (Installed)

2 x 1.9TB M.2 PM9A3 NVMe Solid State Drive (Gen 4)
4 x 1.9TB 2.5" PM9A3 NVMe PCIe 4.0 Solid State Drive (1 x DWPD)

Graphic Controller

Servers_Graphic Installed

1

GPU Type

NVIDIA HGX GPU Baseboard 8 B200

Video Memory

180GB

Networking

Ethernet Controller

8 x Supermicro 400-Gigabit MCX75310AAS-NEAT (1 x OSFP) Ethernet Network Adapter
1 x BlueField-3 BF3220 DPU 200GbE Dual Port Crypto Enable
1 x 2 RJ45 10Gbase-T Ports

Expansion & Ports

Expansion Bays

10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)

Power

Power Characteristics

6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies

Environmental

Temperature

Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity

Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

Dimensions & Weight

Dimensions

17.2" x 17.6" x 33.2"

Weight

293 lbs.

Additional Information

First Listed on Newegg

July 29, 2025
